FAST GEAR BOX

FAST Gearbox was founded in 1968 and is located in Xi'an, Shaanxi. It is the world's largest commercial vehicle transmission production base and a supplier of high-quality automotive transmission systems and high-end equipment intelligent manufacturing comprehensive solutions. The company has ranked first in China's gear industry operating indicators for 21 consecutive years, and its annual production and sales of heavy-duty vehicle transmissions have remained the world's first for 18 consecutive years. Its transmission products are widely used in SHACMAN, SINOTRUK, SANY, North Benz, FAW JIEFANG, Chongqing Hongyan, and DONGFENG Chenglong. The quality has been unanimously praised by many truck users.

12JS180TA Transmission

12JS180TA is a product of the 12JS series heavy-duty automobile mechanical transmission produced by Fast. It has 12 forward gears and 2 reverse gears, and the maximum input torque is 1800N.m. It is suitable for trucks, dump trucks, container transport trucks and various special vehicles. The second shaft assembly of the transmission of this series is adjustment-free. Please refer to the relevant group drawings for the assembly process, including the assembly of reverse gear, first gear, synchronizer components, etc.

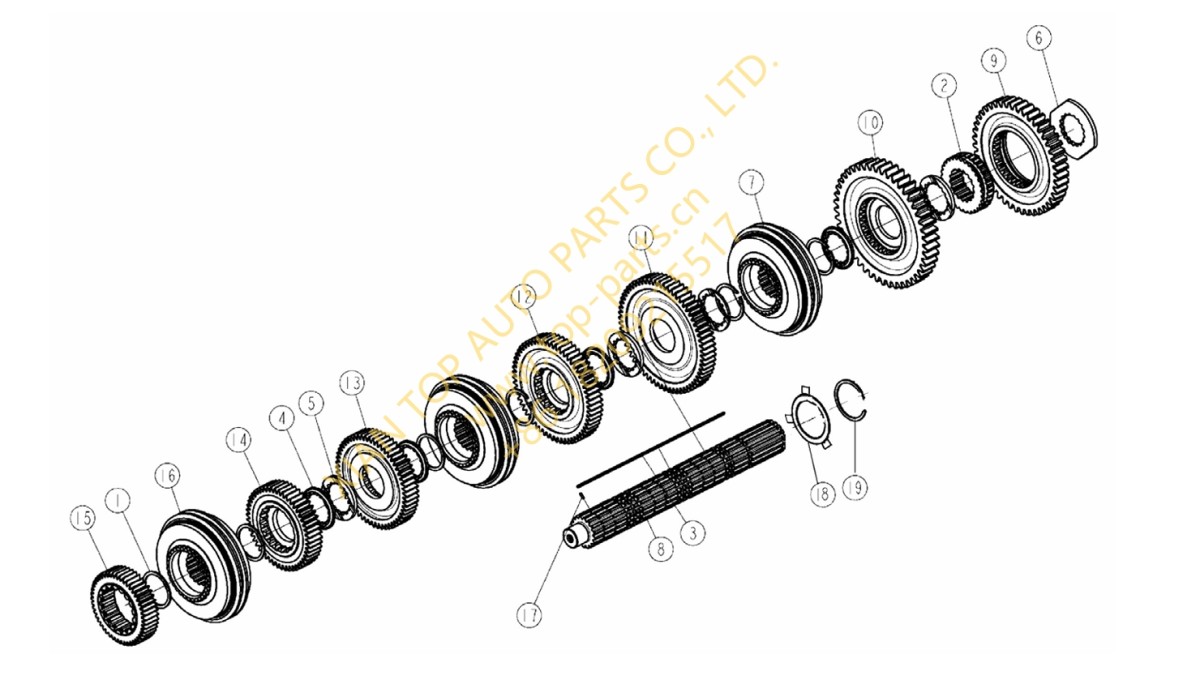

12JS180TA Transmission Main Shaft Part Number List

1 16763 止动环 stop ring 6

2 12JS160T-1701108 滑套 Sliding bush 1

3 12JS160T-1701121 二轴六角键 Hex key of main shaft 1

4 12JS160T-1701122 二轴齿轮花键垫 Spline gasket for main shaft gears 5

5 12JS160T-1701123 二轴齿轮隔垫 Distance gasket for main shaft gears 3

6 12JS160T-1701125 二轴倒档齿轮垫片 Gasket for reverse gear of main shaft 1

7 12JS160T-1701170 一二档同步器总成 1st and 2nd synchronizer assembly 1

8 12JS200T-1701105 二轴 Main shaft 1

9 12JS200T-1701110 二轴倒档齿轮 Reverse gear of main shaft 1

10 12JS200T-1701111 二轴一档齿轮 1st speed gear of main shaft 1

11 12JS200T-1701112 二轴二档齿轮 2nd speed gear of main shaft 1

12 12JS200T-1701113 二轴三档齿轮 3rd speed gear of main shaft 1

13 12JS200T-1701114 二轴四档齿轮 4th speed gear of main shaft 1

14 12JS200T-1701115-1 二轴五档齿轮 5th speed gear of main shaft 1

15 12JS200T-1701116-1 一轴齿轮 Input shaft gear 1

16 JS130T-1701180 三四档同步器总成 3rd and 4th synchronizer assembly 2

17 Q5280310 弹性圆柱销 Spring cylinder pin 1

18 12JS160T-1701106 主轴齿轮垫圈 Gasket for main shaft gears 1

19 12JS160T-1701107 倒档齿轮止动环 Retaining ring of reverse gear 1

Fittable Truck Model: SHACMAN F2000, F3000, SINOTRUK HOWO A7

If you need above second shaft truck parts for sale, welcome to contact with us!
