Weichai Power is dedicated to providing customers with efficient and reliable engine solutions. As the world's largest diesel engine manufacturer, Weichai Power has a variety of engine technologies to meet the needs of different customers. Its product range covers a variety of types from small diesel engines to large diesel engines, as well as gas engines, which are widely used in construction machinery, agricultural machinery, commercial vehicles, fisheries, port service equipment, oil exploration and production, etc. Weichai Power focuses on technological innovation and intelligent control, and is committed to improving efficiency, reducing energy consumption and reducing pollution to meet the personalized needs of customers.
The WP10E32 National III engine is a diesel engine produced by WEICHAI Power Co., Ltd. and belongs to the WP10 series. The engine is mainly suitable for SHACMAN SINOTRUK heavy duty trucks and has the following main parameters and characteristics:
Engine model: WP10.380E32
Brand: WEICHAI
Displacement: 9.726L
Emission standard: National III/Euro III
Maximum output power: 280kW (380 horsepower)
Rated speed: 2200rpm
Maximum torque: 1600N.m
Maximum torque speed: 1500-1800rpm
Full load minimum fuel consumption rate: 196g/kW.h
Engine type: water-cooled, four-stroke, with exhaust valve brake, direct injection, turbocharged intercooler
Engine net weight: 875kg
Engine size: 1525×730×1063mm
Cylinder diameter x stroke: 126x130mm
Number of valves per cylinder: 4
Ignition order: 1-5-3-6-2-4

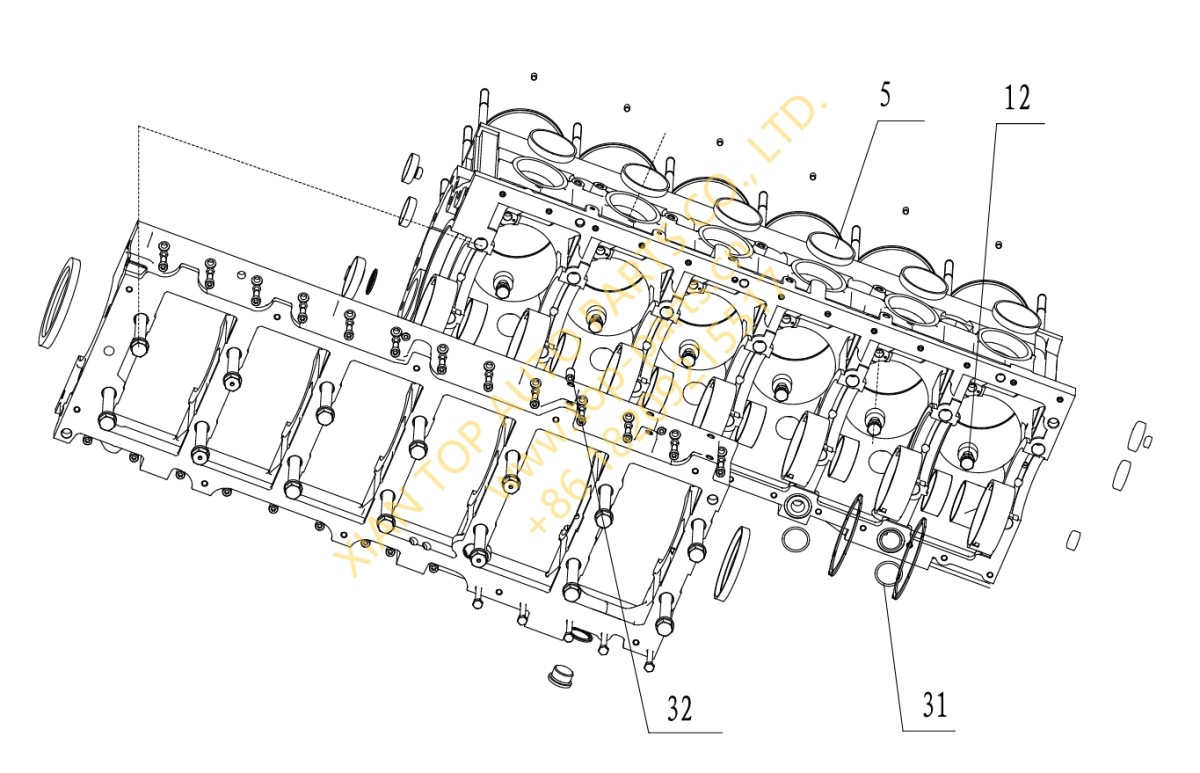

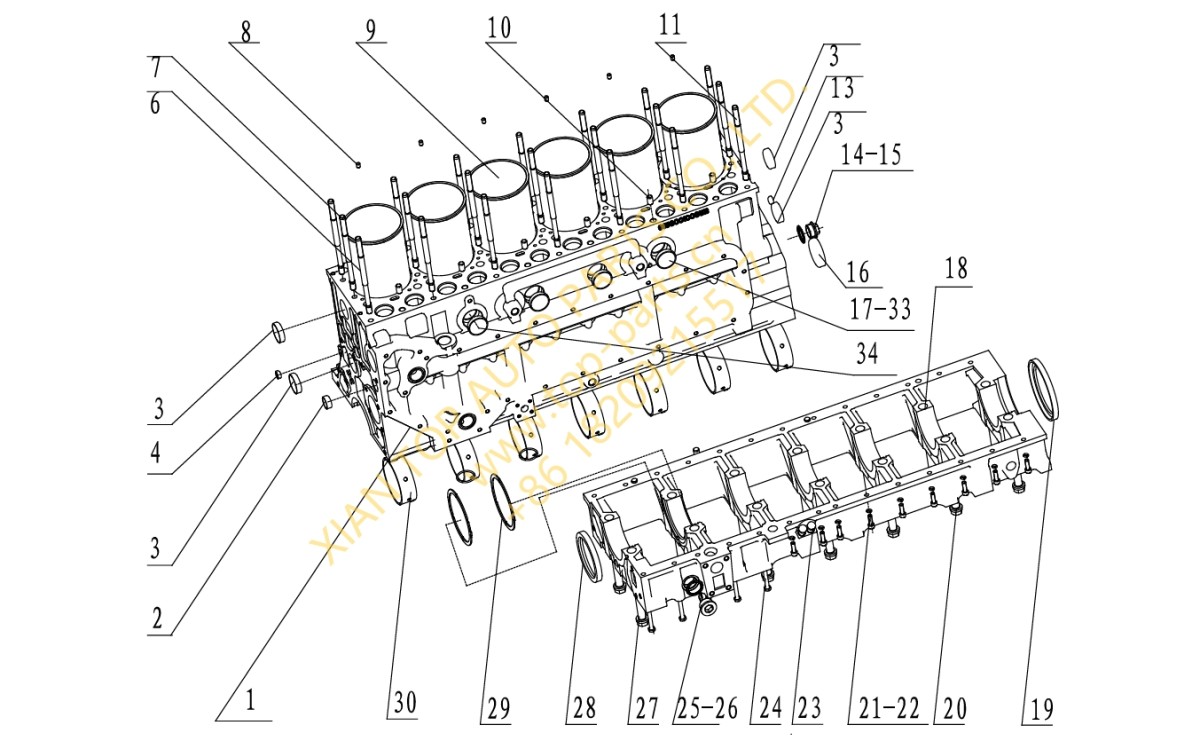

12JS180TA Transmission Main Shaft Part Number List
1 612600011532 1 HT250-GB/T9439 气缸体 Cylnder Block
2 90003989204 1 D=28mm 碗形塞 Corehole plug
3 90003982121 4 D=45mm 碗形塞 Corehole plug
4 90003989480 1 D=17mm 碗形塞 Corehole plug
5 90003989210 6 D=75mm 碗形塞 Corehole plug
6 612600010893 1 40CrA-GB/T3077 气缸盖螺栓 Bolt
7 61500010185S 14 气缸盖螺栓 Bolt
8 90003909626 6 M6X12 弹性圆柱销 Spring-type straight pin
9 612630010015 6 CU-B Q/WCG720 气缸套 Liner
10 90003901604 6 M12X20 弹性圆柱销 Spring-type straight pin
11 61500010185 6 气缸盖螺栓 Bolt
12 GRP100010202 6 喷嘴结合组 Oil nozzle assembly
13 90003989480 1 D=17mm 碗形塞 Corehole plug
14 612600010735 1 复合垫圈 Sealing ring
15 90003962051 1 CM30×1.5-5.8 DIN7604 六角螺塞 Heaxgon Head Plug
16 90003989288 1 D=65mm 碗形塞 Corehole plug
17 90003989289 4 D=40mm 碗形塞 Corehole plug
18 612600012736 1 曲轴箱 Crankcase
19 61500010100 1 后油封 Rear oil seal cover
20 614010217 4 42CrMo-GB/T3077 主轴承螺栓 Bolt
21 188250083 22 65Mn-P-Ⅱ-Q-T-0.8-YB/T5058 自锁垫圈 Washer
22 90003862428 22 内六角圆柱头螺钉 Hexagon socket head cap screw
23 612600010538A 2 油尺管堵 Screw block
24 90003802493 5 Q150B08110 六角头螺栓 Bolt
25 612600010735 1 复合垫圈 Sealing ring
26 90003962050 1 M30×1.5-5.8ZnDIN908 内六角螺塞 Heaxgon Head Plug
27 614010114 10 主轴承螺栓 Bolt
28 61500010037 1 前油封 Front oil seal
29 612600013358 1 止推片 Thrust plate assembly
30 81500010046 7 主轴瓦 Main bearing set
31 81400010032 2 密封圈 Washer
32 90003901604A 3 Q5211226 圆柱销 Spring-type straight pin
33 90003989215 3 D=45mm 碗形塞 Corehole plug
34 90003989204 1 D=45mm 碗形塞 Corehole plug
Fittable Truck Model: SHACMAN F2000, F3000, M3000, X3000, X6000, SINOTRUK HOWO A7
If you need above second shaft truck parts for sale, welcome to contact with us!
