Weichai Power is dedicated to providing customers with efficient and reliable engine solutions. As the world's largest diesel engine manufacturer, Weichai Power has a variety of engine technologies to meet the needs of different customers. Its product range covers a variety of types from small diesel engines to large diesel engines, as well as gas engines, which are widely used in construction machinery, agricultural machinery, commercial vehicles, fisheries, port service equipment, oil exploration and production, etc. Weichai Power focuses on technological innovation and intelligent control, and is committed to improving efficiency, reducing energy consumption and reducing pollution to meet the personalized needs of customers.
The WP10E32 National III engine is a diesel engine produced by WEICHAI Power Co., Ltd. and belongs to the WP10 series. The engine is mainly suitable for SHACMAN SINOTRUK heavy duty trucks and has the following main parameters and characteristics:
Engine model: WP10.380E32
Brand: WEICHAI
Displacement: 9.726L
Emission standard: National III/Euro III
Maximum output power: 280kW (380 horsepower)
Rated speed: 2200rpm
Maximum torque: 1600N.m
Maximum torque speed: 1500-1800rpm
Full load minimum fuel consumption rate: 196g/kW.h
Engine type: water-cooled, four-stroke, with exhaust valve brake, direct injection, turbocharged intercooler
Engine net weight: 875kg
Engine size: 1525×730×1063mm
Cylinder diameter x stroke: 126x130mm
Number of valves per cylinder: 4
Ignition order: 1-5-3-6-2-4

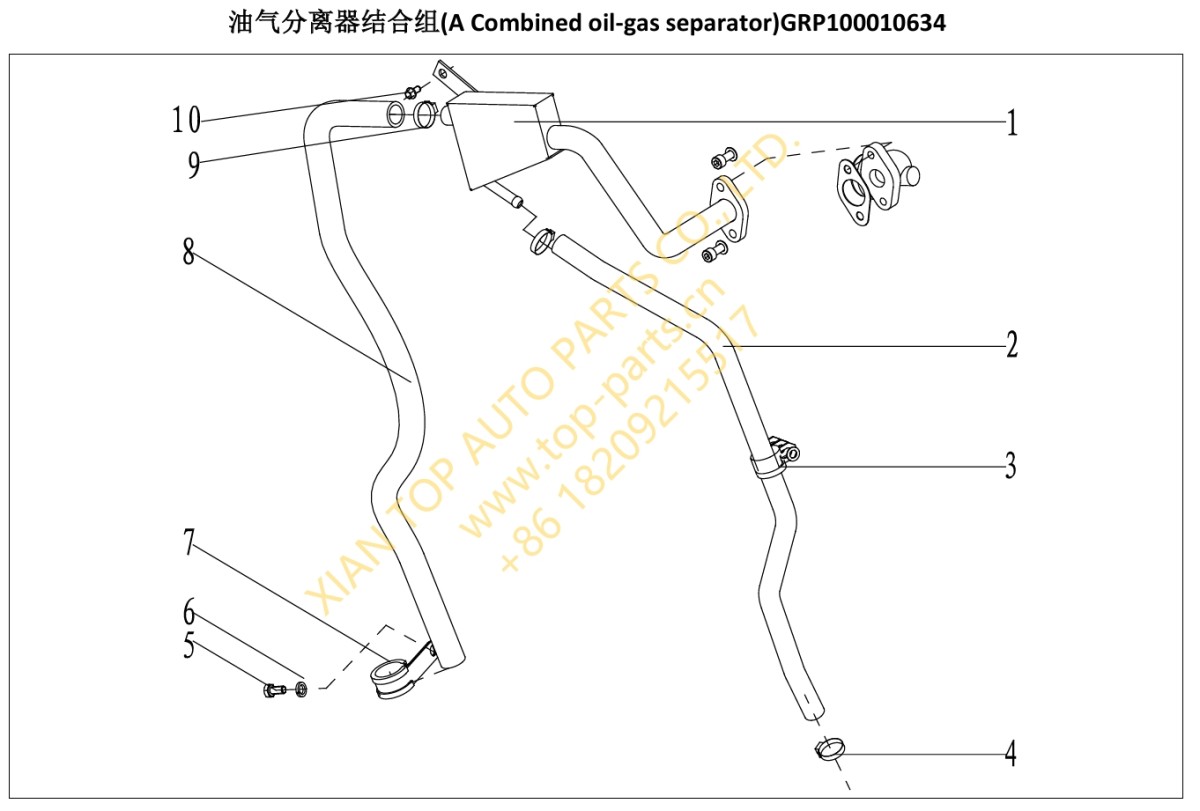

WEICHAI WP10E32 EURO Ⅲ DIESEL ENGINE Oil Gas Part Number List
1 612600013164 1 Oil-gas separator 油气分离器总成
2 612600011547 1 Oil-gas separator M6CH6010A25C12EO36F17-HG/T2196
3 612600111639 2 无纤维夹层橡胶软管 Hose 单管夹子
4 90003989300 2 Pipe clamp assembly Q67619
5 90011270002 1 软管卡箍 Clamp M10×16GB/T5783-8.8-H.Y
6 90003931122 1 Q40310 六角头螺栓全螺纹 Hexagon screw Single coil spring lock washer, Normal type
7 弹簧垫圈 612600011361 1 单管夹子
8 612600012525 1 Pipe clamp assembly 油气分离器出气胶管
9 90003989340 1 Rubber pipe 19~29
10 90011430021 1 Q1800612 软管卡箍 Clamp 六角法兰面承面带齿螺栓 Heaxgon flange bearing toothed bolt
Fittable Truck Model: SHACMAN F2000, F3000, M3000, X3000, X6000, SINOTRUK HOWO A7
If you need above second shaft truck parts for sale, welcome to contact with us!
