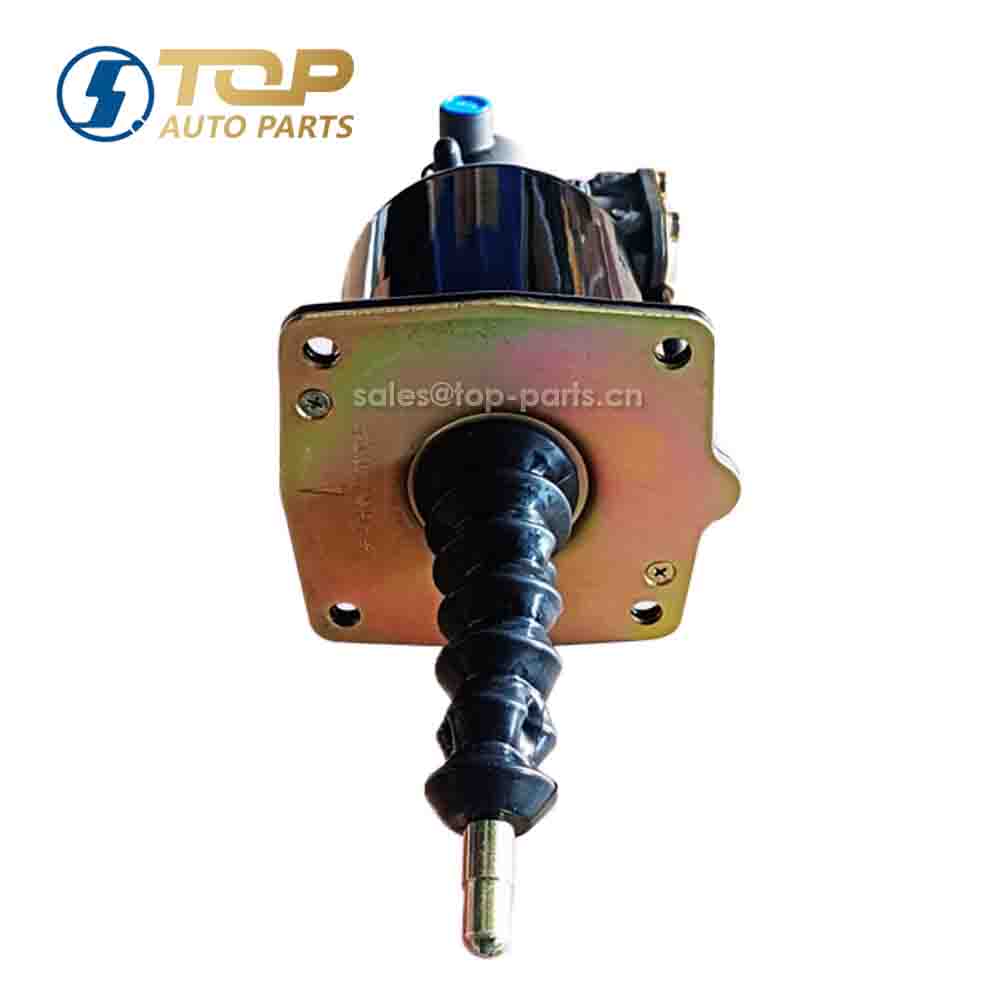

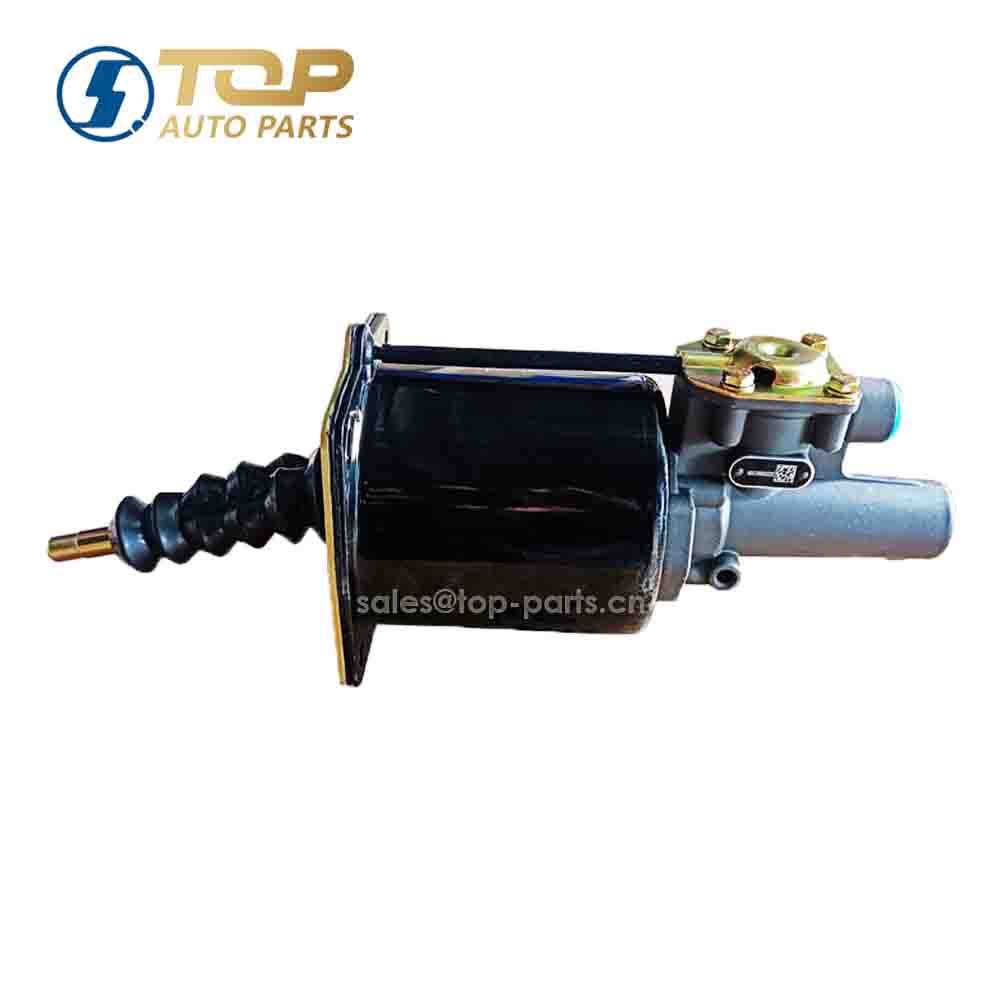

The truck clutch slave cylinder is an important part of the truck clutch system. Its main function is to assist the driver to control the separation and engagement of the clutch by operating the clutch pedal.

Working principle

The working principle of the clutch slave cylinder is based on the hydraulic system. When the driver steps on the clutch pedal, the piston of the clutch master cylinder is pushed, thereby increasing the oil pressure. The high-pressure oil flows into the clutch slave cylinder through the hose, and the pull rod of the slave cylinder drives the release fork, pushing the release bearing forward to achieve the separation of the clutch. When the clutch pedal is released, the pressure in the hydraulic system is released, and the release fork returns to its initial position under the action of the return spring, and the clutch resumes the engaged state.

.
